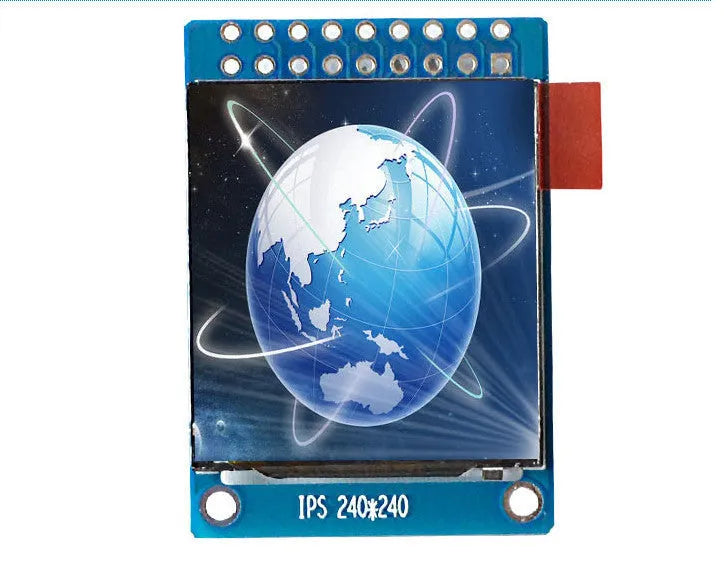

1.3 Inch IPS LCD Display Module with 240x240 Resolution and ST7789 Driver Chip

This compact 1.3-inch square IPS LCD display module provides a practical visual interface solution for embedded electronics projects and DIY applications. With its 240x240 pixel resolution and full-colour capability, the screen delivers clear graphical and textual information for microcontroller-based systems. The display utilises IPS panel technology, which offers improved viewing angles and colour reproduction compared to conventional TFT LCD alternatives. Measuring just 27.78mm by 39.22mm overall with a 23.4mm square active area, this module fits neatly into space-constrained designs while providing sufficient screen real estate for status indicators, sensor readings, or simple user interfaces.

Features and Construction

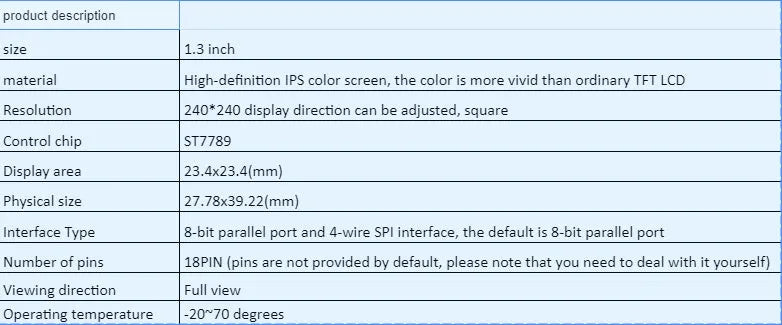

The 1.3-inch display combines several technical specifications that make it suitable for various electronics applications. Its compact form factor and flexible connectivity options address common requirements in prototype development and finished product integration.

Material and Build

The display panel utilises IPS (In-Plane Switching) LCD technology, which provides wider viewing angles and improved colour consistency compared to standard TFT screens. This construction allows the display to maintain image quality when viewed from different angles, making it suitable for applications where the viewing position might vary. The ST7789 driver chip manages the display's operation, translating digital signals into the visual output shown on the 240x240 pixel grid.

Size and Practical Fit

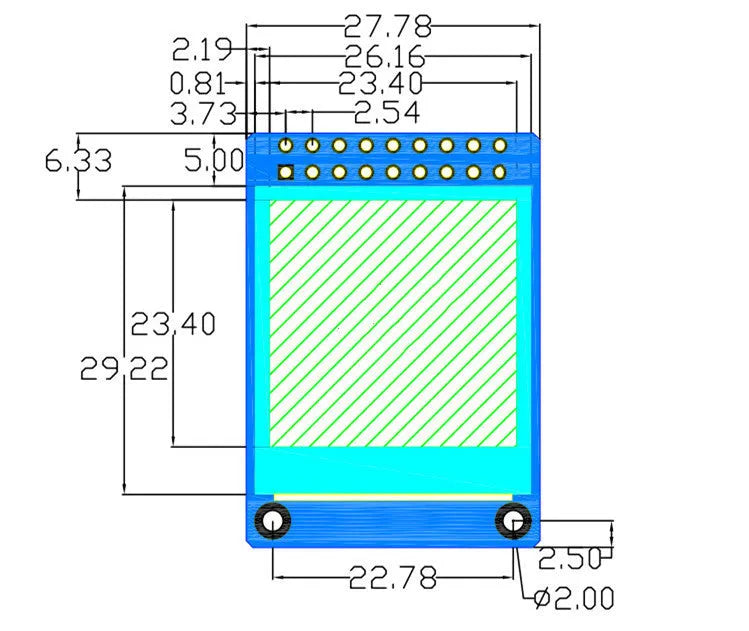

With physical dimensions measuring 27.78mm by 39.22mm, this display module fits conveniently into compact electronics enclosures and prototyping boards. The active display area occupies 23.4mm square within this footprint, providing a usable screen space proportionate to the module's overall size. This square format with 240x240 resolution creates a balanced aspect ratio suitable for displaying icons, graphs, or text in symmetrical layouts without excessive blank space around content edges.

Uses and Placement

The display's technical specifications and interface options make it applicable across different levels of electronics projects, from educational experimentation to professional prototyping work.

Event or Professional Use

For professional applications, this display module serves as a component in embedded systems requiring compact visual feedback. Its -20°C to 70°C operating temperature range allows deployment in environments beyond typical indoor conditions, potentially supporting industrial monitoring equipment, portable measurement devices, or outdoor instrumentation. The adjustable display direction feature enables installation in various orientations without compromising readability, while the dual interface support accommodates different microcontroller architectures commonly used in commercial prototypes.

Everyday Home Use

For hobbyists and home electronics enthusiasts, this 1.3-inch display provides a visual output solution for Raspberry Pi, Arduino, or other microcontroller projects. Its manageable size makes it suitable for smart home interfaces, weather station displays, or DIY gaming consoles where space is limited. The full-colour capability enhances project visual appeal compared to monochrome alternatives, while the IPS technology ensures readable screens from typical viewing positions in home environments. The 18-pin connector, though requiring separate pin headers, follows a standard footprint compatible with common prototyping techniques.

Benefits and Buying Value

This display module offers specific advantages derived from its measurable specifications rather than abstract quality claims, focusing on practical application benefits supported by the provided technical data.

Reuse and Low Maintenance

The display's durable construction and standard interfaces facilitate reuse across multiple projects. Its compatibility with both 8-bit parallel and 4-wire SPI connections means it can adapt to different microcontroller platforms as your skills or project requirements evolve. The solid-state design with no moving parts contributes to reliable operation without routine maintenance, while the specified temperature range suggests suitability for continuous operation in stable environments. Proper handling during initial installation, particularly regarding the separate pin requirement, helps ensure long-term functionality.

Why Choose This Product

This 1.3-inch IPS LCD display provides a balanced combination of screen size, resolution, and interface flexibility for electronics projects requiring visual output. The 240x240 resolution on a square format offers pixel density sufficient for detailed graphics or readable text, while the IPS technology improves viewing compared to basic TFT alternatives. The dual interface support accommodates different microcontroller connection preferences without needing adapter boards or complex wiring modifications. These technical specifications, combined with the compact dimensions, make this module a practical choice when screen space must be maximised within limited physical constraints.
