Owon HDS272 Series Handheld Digital Oscilloscope with 40-70 MHz Bandwidth for Portable Electronic Testing

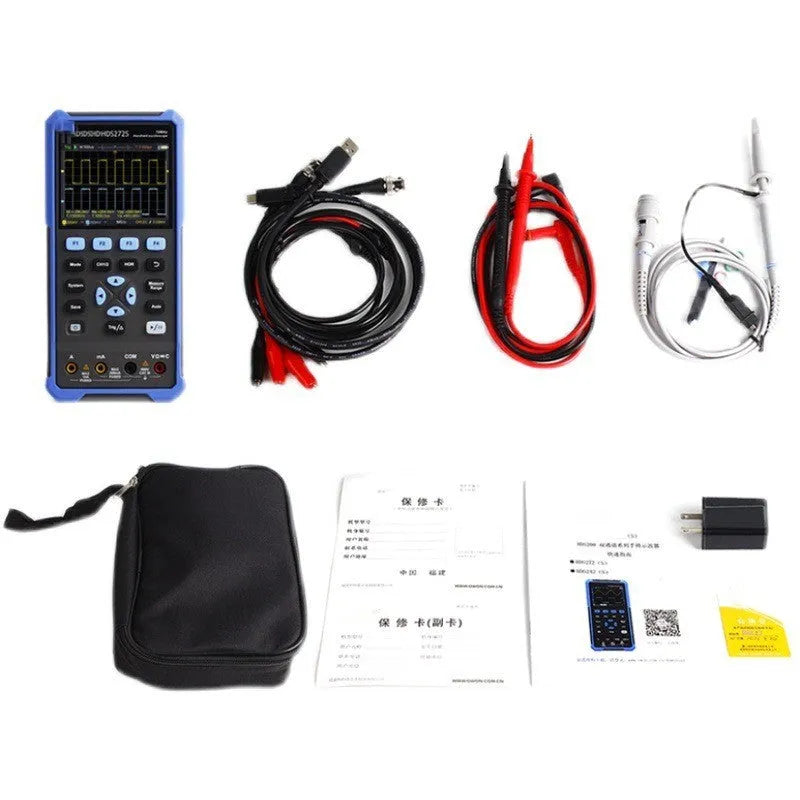

This handheld digital oscilloscope combines the measurement capabilities of laboratory equipment with the portability needed for field service work. With its 40-70 MHz bandwidth range and 250MSa/s sampling rate, it provides sufficient performance for most automotive diagnostics, electronics repair, and industrial maintenance applications. The complete accessory kit including BNC adapters, probe pens, and multimeter leads makes it ready for immediate use without additional purchases.

Features and Construction

The Owon HDS272 series oscilloscope balances measurement specifications with practical portability for technicians who work across multiple locations. Its compact form factor allows easy transport between workshop, field sites, and customer premises.

Material and Build

The device utilises a plastic housing that keeps overall weight manageable for extended handheld use during testing sessions. Internal electronic components provide the 40-70 MHz bandwidth needed for capturing electronic signals across common automotive and consumer electronics frequencies. The construction includes proper shielding to minimise interference during measurements in electrically noisy environments.

Size and Practical Fit

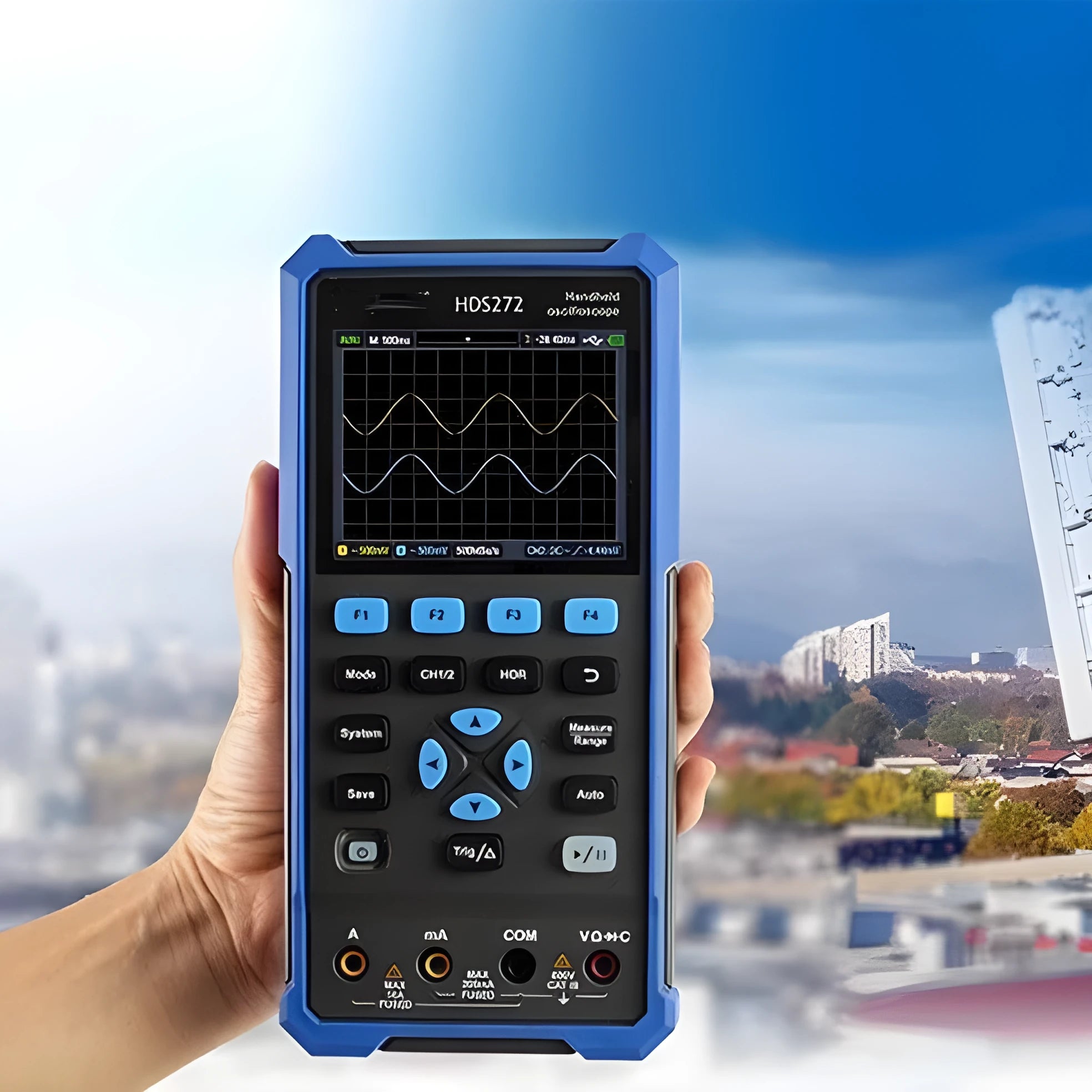

Measuring 198mm x 38mm x 96mm, the oscilloscope fits comfortably in one hand while leaving the other free to manipulate test probes and connections. The dimensions allow it to fit into the included portable carrying bag alongside all accessories, creating a complete diagnostic toolkit that can be transported in a standard toolbox or backpack. The compact size proves particularly useful when working in confined automotive engine bays or behind electronic equipment racks.

Uses and Placement

This oscilloscope serves professionals and hobbyists who need reliable waveform visualisation outside traditional laboratory environments. Its measurement capabilities match common requirements for troubleshooting modern electronic systems.

Event or Professional Use

For automotive technicians, the 40-70 MHz bandwidth enables examination of sensor signals, communication buses, and ignition waveforms commonly found in vehicle electronic systems. The included BNC-to-crocodile clip adapters provide secure connections to test points without soldering, while the 10000 wfms/s waveform capture rate helps identify intermittent faults that might be missed by slower instruments. Field service engineers benefit from the portable design when testing industrial controls, security systems, or telecommunications equipment on customer premises.

Everyday Home Use

Electronics hobbyists and makers can utilise the oscilloscope for prototyping circuits, debugging microcontroller projects, and learning about signal behaviour. The automatic waveform table functions simplify operation for those with less measurement experience, while the USB connectivity allows data transfer to computers for further analysis or documentation. The complete accessory set means beginners have everything required to start measuring signals immediately without purchasing additional probes or adapters.

Benefits and Buying Value

Beyond basic measurement capabilities, this oscilloscope offers practical advantages through its comprehensive accessory package and portable design. These elements provide tangible benefits for users who need reliable diagnostics without excessive equipment bulk.

Reuse and Low Maintenance

The included oscilloscope probe pens, multimeter leads, and BNC adapters are designed for repeated use across multiple testing scenarios. The correction pen allows calibration adjustments when needed, while the portable bag protects the instrument during transport between jobs. The USB cable enables both data transfer and potential firmware updates, extending the device's useful lifespan as measurement needs evolve.

Why Choose This Product

Compared to bulkier benchtop oscilloscopes, this handheld model offers genuine portability without sacrificing essential measurement capabilities for common automotive and electronics applications. The complete accessory kit eliminates the need for separate purchases of probes, adapters, or carrying cases, providing better value than bare instrument options. For technicians who work across multiple locations or need to bring measurement capabilities to the equipment rather than bringing equipment to the bench, this oscilloscope delivers practical functionality in a portable format.
