Dali 4S Lithium Iron Phosphate Battery Protection Board with Balancing for 12V Systems

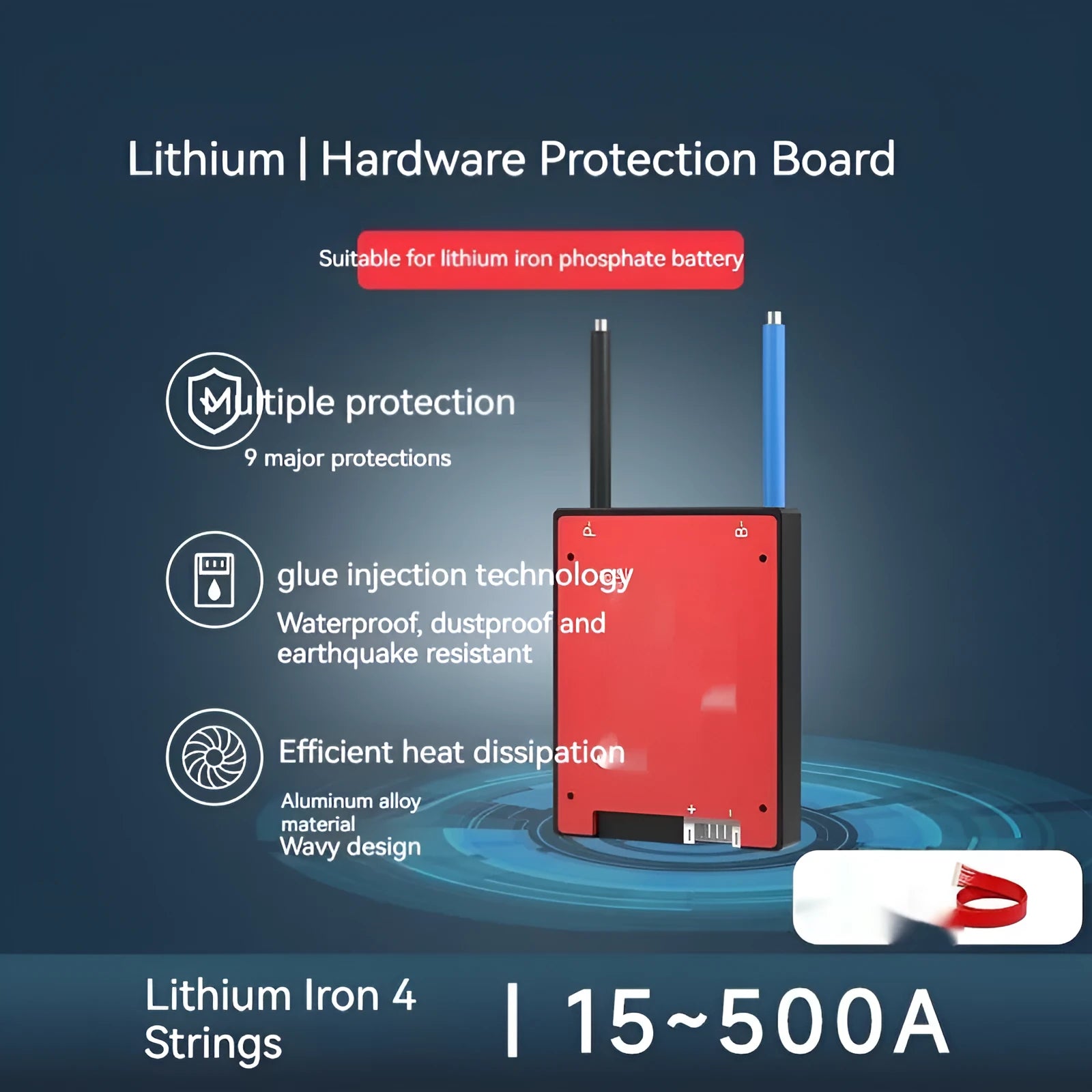

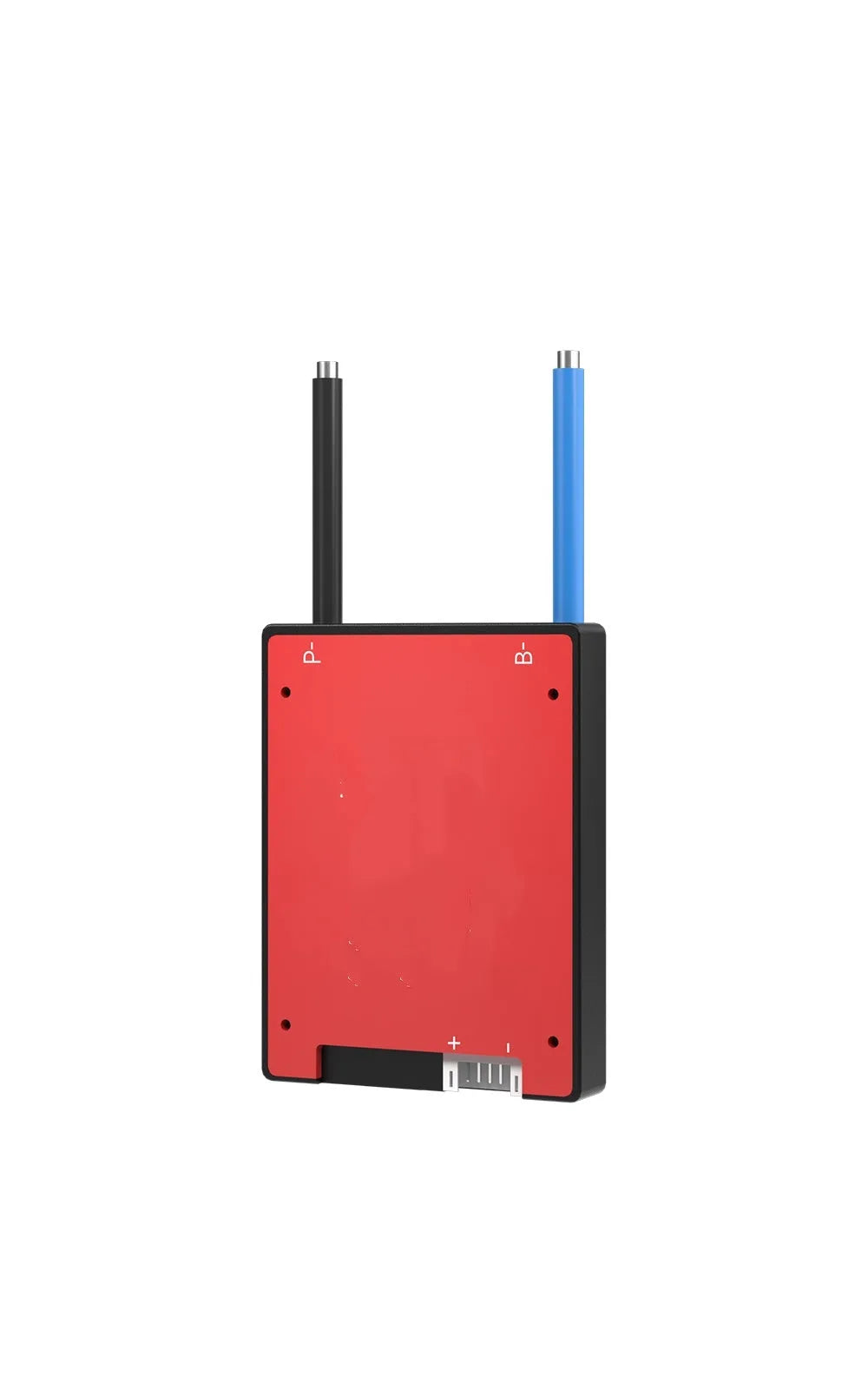

This Dali Battery Management System (BMS) is a dedicated protection board engineered for 4-cell series (4S) lithium iron phosphate (LiFePO4) battery packs. Its primary function is to safeguard a 12V battery system by monitoring and controlling critical parameters during charging and discharging. The board simplifies installation with a same-port design for both input and output connections and incorporates vital cell balancing to promote longevity and consistent performance across all cells. Available in an extensive range of current capacities, it allows users to select a model that precisely matches the power demands of their specific application, from smaller projects to high-power systems.
Features and Construction
The Dali BMS is built around the specific requirements of LiFePO4 chemistry, offering targeted protection for this popular battery type. Its construction focuses on core BMS functionalities essential for safe and reliable battery pack operation.
Material and Build

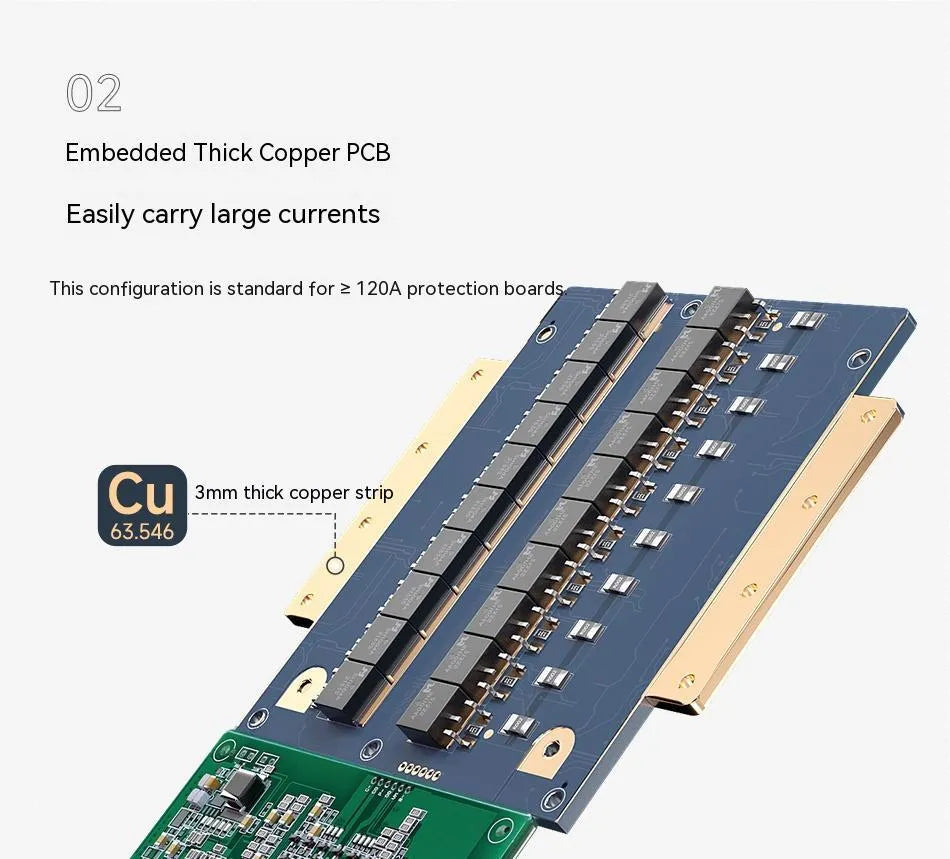

The board is assembled from electronic components selected for compatibility with lithium iron phosphate battery characteristics. Its design centres on providing overcharge, over-discharge, over-current, and short-circuit protection. A key construction feature is the integrated balancing circuit, which works to maintain voltage uniformity across the four cells in the series string, a critical factor in maximising pack capacity and lifespan.
Size and Practical Fit
While specific physical dimensions are not provided, the product's fit is defined by its electrical specifications. It is designed to integrate with standard 4S LiFePO4 configurations, resulting in a nominal 12.8V to 14.6V system. The practical selection is based on the required continuous current rating, which ranges from 15A for lighter loads up to 500A for high-demand applications, ensuring the board can be matched to the exact needs of the battery pack and its load.
Uses and Placement
This protection board is intended for integration into custom or replacement battery packs, serving as a crucial safety and management component in various 12V DC power systems.
Event or Professional Use
In professional, marine, RV, or off-grid power systems, reliable battery protection is non-negotiable. Higher-current models (100A and above) with optional fan cooling are suited for applications like solar energy storage, electric vehicle conversions, or power tools where sustained high current delivery is needed. The balancing function is particularly valuable in these scenarios, where pack stability over many cycles is essential for system uptime and cost-effectiveness.
Everyday Home Use
For DIY electronics, portable power stations, backup power units, or hobbyist projects like robotics and ebikes, the lower to mid-range current models (15A to 80A) provide adequate protection. The same-port design simplifies the build process for users constructing their own battery packs, reducing wiring complexity and potential connection errors in a home workshop environment.
Benefits and Buying Value
The value of this BMS lies in its targeted functionality, configuration clarity, and the range of options that prevent over-specifying or under-specifying for a given project.
Reuse and Low Maintenance
By preventing harmful operating conditions like overcharging and cell imbalance, the board directly contributes to extending the functional lifespan of the entire LiFePO4 battery pack. This protection reduces the likelihood of premature pack failure, supporting the battery's potential for thousands of cycles with minimal maintenance beyond the BMS's passive operation.
Why Choose This Product
This Dali BMS offers a clear, specification-driven choice for anyone working with 4S LiFePO4 batteries. The explicit list of available current ratings and the option for fan cooling on high-power models allows for a precise, fact-based selection. It provides the essential protections expected from a BMS without unspecified extras, making it a straightforward component for both new builds and as a replacement board in existing systems.
