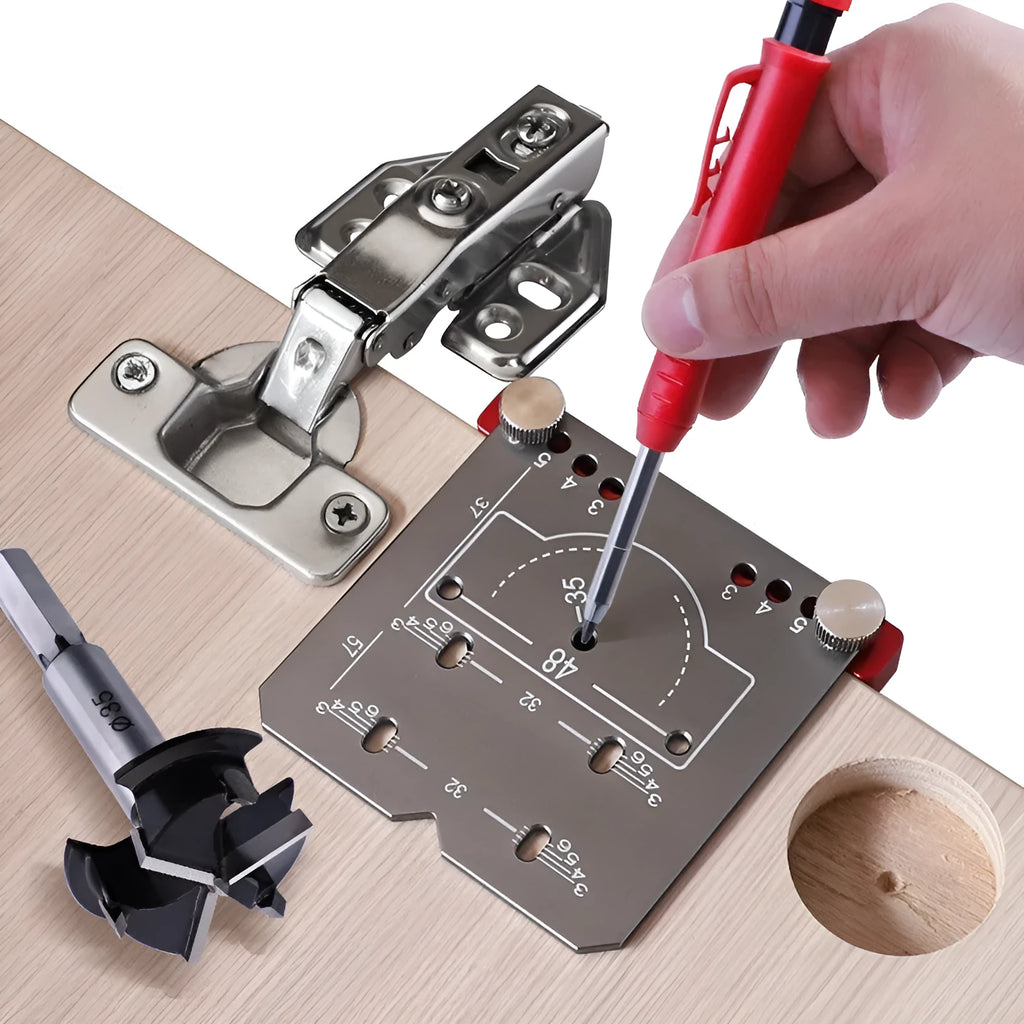

35mm Hinge Punch Locator: Adjustable Margin Tool for Cabinet and Wardrobe Door Installation

Installing hinges on cabinet and wardrobe doors requires precise alignment to ensure smooth operation and a professional finish. This hinge locating rule eliminates guesswork by providing a dedicated tool for fitting 35mm extended arm and middle bend hinges. Designed for household use and DIY woodworking projects, it uses a punch system to mark exact drilling points, saving time and improving accuracy compared to manual measurement. The tool's standout feature is its adjustable margin setting, allowing you to select the perfect door gap for your project.

Features and Construction

This tool combines a specific design purpose with durable materials to handle repeated use in a home workshop environment. Its construction is focused on providing a reliable guide for a common but precise task in cabinet making and furniture assembly.

Material and Build

The main body of the hinge locator is made from aluminium alloy, a material chosen for its good balance of strength and light weight. The integral tapper blade is fabricated from a hard alloy, which has undergone a high-temperature heat treatment process. This treatment increases the blade's hardness and contributes to its wear-resistant properties, helping it stay sharp for punching clean marking holes through multiple uses on various wood types.

Size and Practical Fit

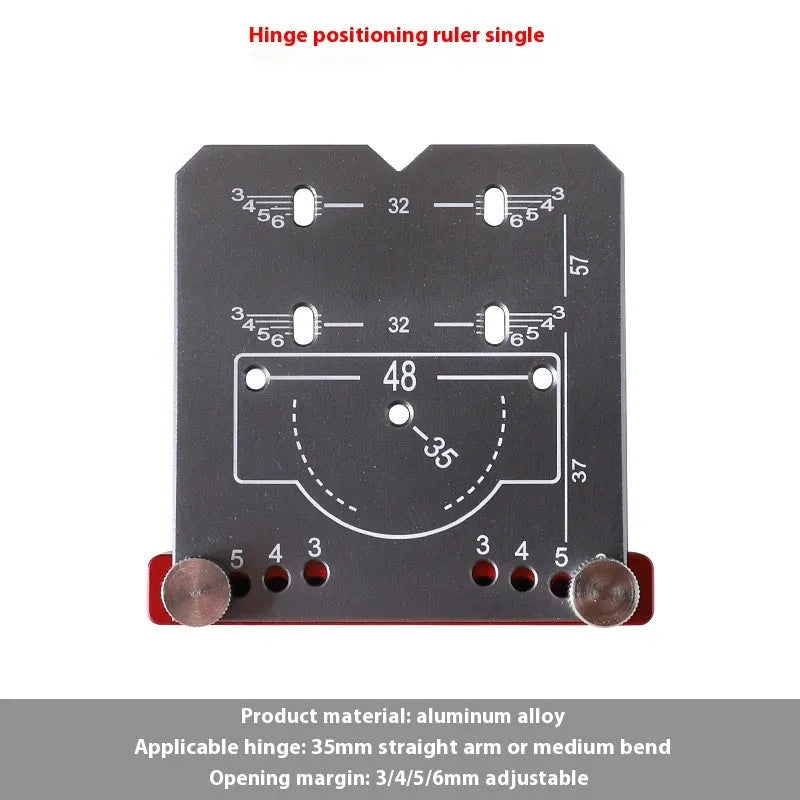

The tool is engineered specifically for hinges with a 35mm cup diameter, which are common in extended arm and middle bend designs used for cabinet and wardrobe doors. Its most significant practical feature is the adjustable margin selector. This allows the user to choose from four predefined door gap settings: 3mm, 4mm, 5mm, and 6mm. This adjustability provides flexibility for different aesthetic preferences or functional requirements, accommodating a wider range of projects than a fixed-gap tool.

Uses and Placement

The primary application of this tool is in the home workshop for furniture assembly and renovation tasks. It turns a skilled, measured process into a more repeatable and straightforward operation, suitable for both occasional DIYers and more frequent hobbyists.

Event or Professional Use

While designed for household use, the tool's precise function can support small-scale professional or semi-professional tasks, such as fitting out a home office, assembling flat-pack furniture requiring custom hinge placement, or renovating kitchen cabinets. The accuracy afforded by the punch locator helps achieve consistent results that are crucial for doors to hang correctly and function smoothly, a key concern in any installation.

Everyday Home Use

For the typical DIY enthusiast, this tool simplifies common projects like building a wardrobe, installing new kitchen unit doors, or repairing existing cabinets. It removes the need for complex calculations or jig-making for hinge placement. By following the tool's guidance, users can achieve reliably spaced hinges, which is fundamental for ensuring doors are aligned, do not bind, and open and close properly.

Benefits and Buying Value

The value of this hinge locator lies in its dedicated function and the practical advantages it offers over improvised marking methods. It provides a focused solution that enhances the quality and efficiency of a specific woodworking task.

Reuse and Low Maintenance

The durable aluminium alloy body and hardened alloy blade are intended for reuse across multiple projects. The tool requires minimal maintenance; keeping it clean and storing it safely are generally sufficient. Its design as a single, solid tool means there are no small parts to lose, and its robustness supports repeated use in a home DIY context.

Why Choose This Product

This product is a practical choice for anyone regularly undertaking cabinet or furniture projects that involve installing 35mm hinges. Its main advantage over a standard ruler and pencil is the guaranteed accuracy and repeatability of the hinge hole positions, facilitated by the physical punch. The adjustable margin feature adds significant value, making one tool suitable for various gap requirements rather than needing multiple dedicated jigs. It represents a focused investment aimed at improving the results and reducing the time spent on a common yet precise task in woodworking.
